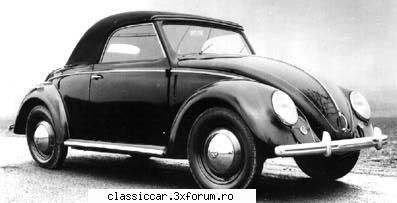

Deschid un nou topic despre Broscutele Hebmuller cabriolete cu doua locuri, care sunt cele mai rare si mai scumpe Broscute, in zilele noastre existand doar cateva bucati in toata lumea, iar pretul unui exemplar sare de 100.000 Euro.
The coachbuilding company Hebmüller And Sons was founded in 1889 by Joseph Hebmüller, it was established in the town of Wuppertal in Germany. At start it constructed horsedrawn carriages but after the death of Joseph in 1919, his sons started building bodies to automobiles. After the World War II the company received an order from the English army to build 15 Humber based cabriolets.[1] The company's best known model is perhaps the two seater convertible based on VW Type 1 platform known as Volkswagen Type 14A. VW ordered 2000 vehicles and the production started in June 1949.
By the end of 1940s company's economical situation was not good and it also suffered from a massive fire in its paint shop. The company met its end in bankruptcy in 1952.[2]
Hebmüller was founded in 1889 by Joseph Hebmüller. They started to make carriages. After Joseph died in 1919, the 4 sons took over the company and started to get more out of the automotive business. When the 2nd world war ended, the company got an order from the English army to build 15 cabriolets based on the Humber. But it were bad times for companies like Hebmüller. It started to change when in 1948 Volkswagen asked Hebmüller to build a prototype for a cabriolet based on the Beetle. They started to build 3 different prototypes. Like all the prototypes built for the KDF wagen, they faced the same problems with torsion in the chassis after the roof was removed. So they modified the chassis to get rid of theses problems. With this last prototype they were meeting easily the standards Volkswagen had set for this car. So it was official approved by Volkswagen and they gave Hebmüller the order to built 2000 cars. The car was officially registered as Type 14A. At the end of 1949 358 cars were delivered. Next to the 14A, there was also a Type 18A, which was a very primitive model for the police. On Saturday 23rd of July a fire destroyed the factory of Hebmüller. At first it looked like Hebmüller could survive this disaster, but the restart was so expensive, that the financial position of the company became so bad that there was no way back. The factory closed in 1952. Karmann took over the production, but built only 14 cars of the Hebmüller design. So this was the end of the beautiful Hebmüller Cabrio. Officially according Volkswagen there were 696 cars produced, although there are serial numbers known above 700. The highest number ever found is 750
Like most coachbuilders, the company Hebmüller And Sons in Wuppertal evolved from a horse-drawn carriage manufacturing company. It was founded by Joseph Hebmüller in 1889. After his death in 1919 his four sons started modifying car bodies. In May 1948 VW:s new leader Heinrich Nordhoff was planing a convertible version of the Beetle. The two coachbuilders chosen to produce the convertible were Karmann in Osnabrück, who was commissioned to build a fourseater, and Hebmüller a two-seater version.
the three first prototypes were built in 1948. Hebmüller used three very early saloons for the conversion. The windscreen was retained. The doors were modified and an aluminium outer frame was added. The engine covers (they are not modified front bonnets) where handcrafted. The rear number plate light and single brakelight were housed in the standard so called "Popes Nose" light unit. The first prototype was fitted with the 1946/47 style bumpers and the large VW-logo style hub caps. The second had the then new grooved bumpers and a set of very unusual hub caps (only ever seen again on a special made Beetle saloon for the emperor of Abyssinia at the 1951 Frankfurt Motor Show). The third prototype had regular hubcaps. The biggest problem found was that they flexed badly which resulted in poor door alignment. The windscreen often broke when fitting the hood in closed position. The problems was solved in the first pre-production car with a very much stronger windscreen frame, several metal plates welded inside the body and a very long and heavy strengthening
boxed rail on each side of the car. This car was produced in April 1949 and in 10000 km of severe testing it proved to function very well. This final design was met with full approval of VW and 2000 cars were ordered. Production began in the month of June 1949. Some changes were made to the production cars. One was a new engine cover that featured a long scoop which incorporated brake- and numberplate light. The air intake louvres were relocated to the body, just above the engine cover. The aluminium grooved body trims from the deluxe Beetle was also fitted. One of the appealing features of the car was the clean lines of the body. Some critics argued that you couldn't accurately tell whether it was coming or going. The spring assisted convertible hood could easily be folded down by one person, disappearing behind the rear jump seat. A tonneau cover could be neatly placed over the lowered frame. Another appealing touch was the two-tone paint work. Hebmüller experimented with several colour schemes. One colour: red, white or black. Two-tone: black & ivory, black & red, Black & yellow or red & ivory. If you wanted your own choice of colour that could be arranged at extra cost. The new twoseater started to sell well even at 7500 DEM.
Fire!
On Saturday 23rd July 1949 a massive fire started in the paint shop. Which was completely destroyed. Some of the production departments was also destroyed. Following the fire the factory looked repairable, but only just. After a tremendous effort the production was up and running after only four weeks.
The production rose slowly in the autumn of 1949, but by February 1950 it had declined and in April pf that year, only 17 was made. Then nothing. A few bodies were sent to The Karmann Factory and 15 cars where assembled between august 1951 an February 1953. It was apparent that Hebmüller had big financial problems. The problems got worse as the time went on, and the firm went bankrupt in 1952. Hebmüller had never really recovered from the fire. Later Ford purchased the works to manufacture steering knuckles and other parts.
How many?
Although VW:s official is 696, other figures suggests that approximately750 exists. There are today at least two surviving cars from 1950 that have a bodynumber greater than 700. Over 100 cars have survived and a Hebmüller 14 A is a very popular collectors car these days. One in good condition is far to expensive for most of us, but the dream of a Hebmüller is deep inside all lovers of vintage Volkswagens.
Original text by Bob Shaill, see him in his Hebmüller!
Slightly shortened by Jan-Anders Lindqvist.
Here is a nice page on a Hebmüller project, that also has links to some other Hebmüller pages.
Un exemplar restaurat de Vest Coast Classic din California:
Si un exemplar aflat in posesia celor de la BBT4VW din Belgia:
Mai am undeva niste poze cu Hebmuller dar nu le gasesc acuma.
Daca mai aveti poze, documentatii sau linkuri despre aceasta tema postati-le si voi aici ca este vorba de niste raritati adevarate.
15.7KB
_______________________________________
NU TOATE MASINILE VECHI SUNT RABLE!
UN POPOR CARE ISI INGROAPA TRECUTUL, NU VA AVEA VIITOR!
SUNT MANDRU DE RABLELE MELE !!!
|
|
| pus acum 15 ani |
|
Misu de Cluj
Admin
Din: Cluj-Napoca
Inregistrat: acum 15 ani
Postari: 48194
|
|

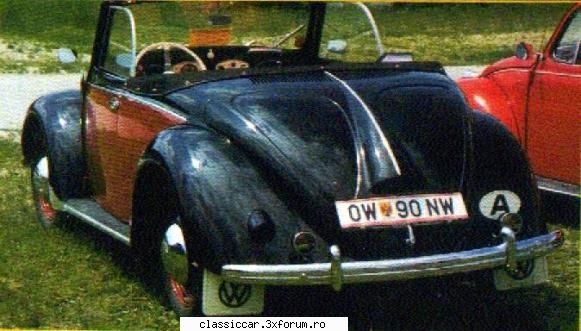

Din spate... capota spate era asemanatoare cu cea din fata, din cauza ca era doar cu 2 locuri
8.7KB
_______________________________________
NU TOATE MASINILE VECHI SUNT RABLE!
UN POPOR CARE ISI INGROAPA TRECUTUL, NU VA AVEA VIITOR!
SUNT MANDRU DE RABLELE MELE !!!
|
|
| pus acum 15 ani |
|
Misu de Cluj
Admin
Din: Cluj-Napoca
Inregistrat: acum 15 ani
Postari: 48194
|
|
Hebmuller Type 14A
49.4KB
_______________________________________
NU TOATE MASINILE VECHI SUNT RABLE!
UN POPOR CARE ISI INGROAPA TRECUTUL, NU VA AVEA VIITOR!
SUNT MANDRU DE RABLELE MELE !!!
|
|
| pus acum 15 ani |
|
Misu de Cluj
Admin
Din: Cluj-Napoca
Inregistrat: acum 15 ani
Postari: 48194
|
|
58.5KB
_______________________________________
NU TOATE MASINILE VECHI SUNT RABLE!
UN POPOR CARE ISI INGROAPA TRECUTUL, NU VA AVEA VIITOR!
SUNT MANDRU DE RABLELE MELE !!!
|
|
| pus acum 15 ani |
|
Misu de Cluj
Admin
Din: Cluj-Napoca
Inregistrat: acum 15 ani
Postari: 48194
|
|
53.7KB
_______________________________________
NU TOATE MASINILE VECHI SUNT RABLE!
UN POPOR CARE ISI INGROAPA TRECUTUL, NU VA AVEA VIITOR!
SUNT MANDRU DE RABLELE MELE !!!
|
|
| pus acum 15 ani |
|
Misu de Cluj
Admin
Din: Cluj-Napoca
Inregistrat: acum 15 ani
Postari: 48194
|
|
41.2KB
_______________________________________
NU TOATE MASINILE VECHI SUNT RABLE!
UN POPOR CARE ISI INGROAPA TRECUTUL, NU VA AVEA VIITOR!
SUNT MANDRU DE RABLELE MELE !!!
|
|
| pus acum 15 ani |
|
Misu de Cluj
Admin
Din: Cluj-Napoca
Inregistrat: acum 15 ani
Postari: 48194
|
|
45.3KB
_______________________________________
NU TOATE MASINILE VECHI SUNT RABLE!
UN POPOR CARE ISI INGROAPA TRECUTUL, NU VA AVEA VIITOR!
SUNT MANDRU DE RABLELE MELE !!!
|
|
| pus acum 15 ani |
|
Misu de Cluj
Admin
Din: Cluj-Napoca
Inregistrat: acum 15 ani
Postari: 48194
|
|
45.5KB
_______________________________________
NU TOATE MASINILE VECHI SUNT RABLE!
UN POPOR CARE ISI INGROAPA TRECUTUL, NU VA AVEA VIITOR!
SUNT MANDRU DE RABLELE MELE !!!
|
|
| pus acum 15 ani |
|
Misu de Cluj
Admin
Din: Cluj-Napoca
Inregistrat: acum 15 ani
Postari: 48194
|
|

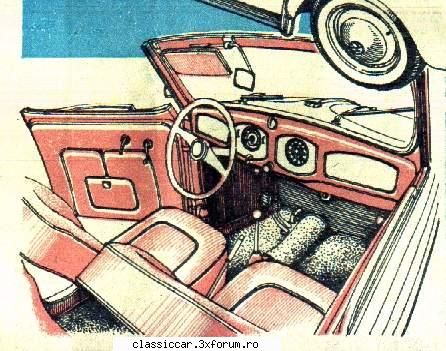

Un articol, din revista Autoturism nr. 9/1990, despre Broscutele Hebmuller
Hebmuller
_______________________________________
NU TOATE MASINILE VECHI SUNT RABLE!
UN POPOR CARE ISI INGROAPA TRECUTUL, NU VA AVEA VIITOR!
SUNT MANDRU DE RABLELE MELE !!!
|
|
| pus acum 15 ani |
|
Misu de Cluj
Admin
Din: Cluj-Napoca
Inregistrat: acum 15 ani
Postari: 48194
|
|

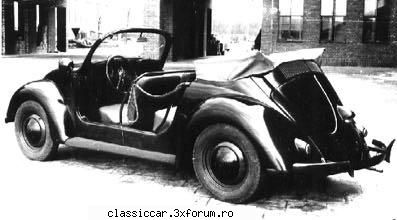

Si varianta Typ 18A pentru Politie si pentru Graniceri
20.7KB
_______________________________________
NU TOATE MASINILE VECHI SUNT RABLE!
UN POPOR CARE ISI INGROAPA TRECUTUL, NU VA AVEA VIITOR!
SUNT MANDRU DE RABLELE MELE !!!
|
|
| pus acum 15 ani |
|
Misu de Cluj
Admin
Din: Cluj-Napoca
Inregistrat: acum 15 ani
Postari: 48194
|
|

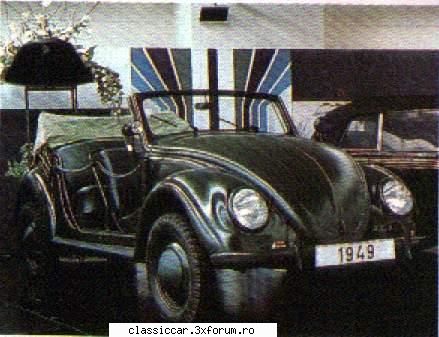

Tot Typ 18A
34.9KB
_______________________________________
NU TOATE MASINILE VECHI SUNT RABLE!
UN POPOR CARE ISI INGROAPA TRECUTUL, NU VA AVEA VIITOR!
SUNT MANDRU DE RABLELE MELE !!!
|
|
| pus acum 15 ani |
|
Misu de Cluj
Admin
Din: Cluj-Napoca
Inregistrat: acum 15 ani
Postari: 48194
|
|

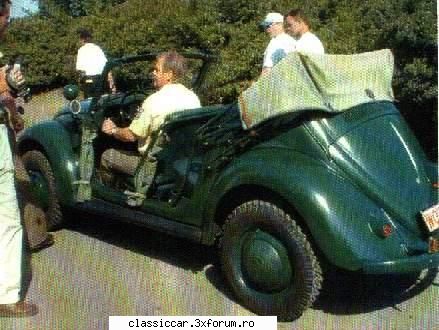

Typ 18A este chiar si mai rara decat roadsterul Typ 14A
